Vertica®

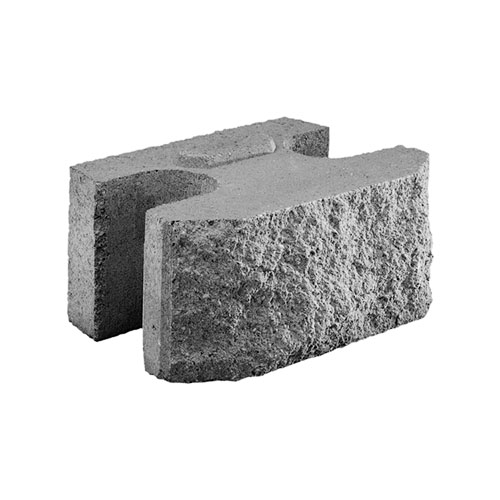

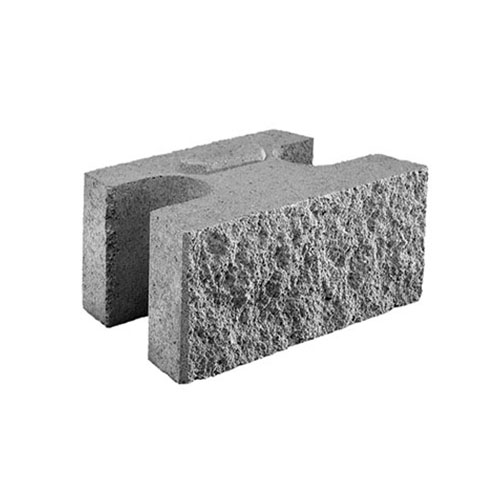

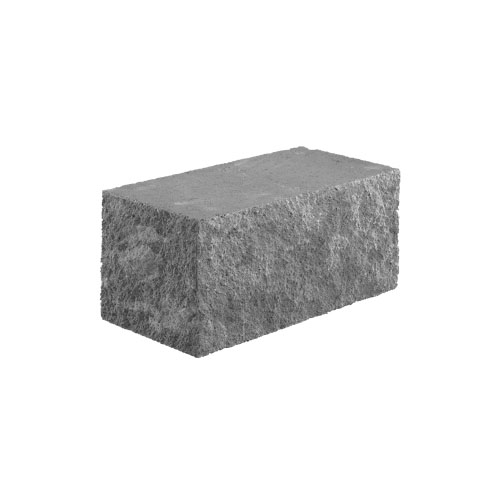

The Belgard Vertica® is the ideal choice for large-scale retaining walls that require strength, durability, and a clean look in a near-vertical appearance. Applications include terraced walls, site development, bridges, multi-family developments, DOT roadways, water channels, pools, extreme loading, and more. Textured units are available in straight or beveled face.
Features & Benefits
- Pinless, patented locator lug gives quick, uniform setback for reduced labor costs.
- Used in commercial site development or anywhere space is at a premium.
- Can be used to build gravity walls up to 3′ 4″high, including the buried course.
- Taller walls can be built using geosynthetic reinforcement when designed by a qualified engineer.
- Minimum outside radius, measured on the top course to the front of the units: 5 feet.
- Minimum inside radius, measured on the base course to the front of the units: 7 feet.
- Setback/System Batter: 9/32″/2° or 9/16″/4°.
Please refer to this page for information regarding Precautionary Statement & California’s Proposition 65.
-
-
Vertica – CAD Details12.64MB | .ZIP1.47MB | .DWG
-

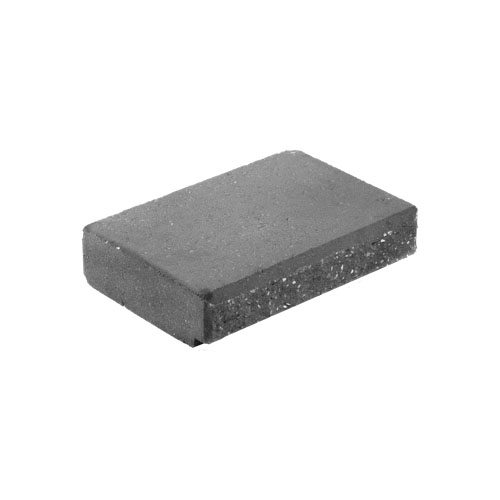

Vertica Typical Capping – PDF Detail190.51KB | .PDF
-
Vertica Typical Base Preparation – PDF Detail272.90KB | .PDF
-
Vertica Typical Base Step-up – PDF Detail223.38KB | .PDF
-
Vertica Typical Reinforced Cross Section – PDF Detail227.18KB | .PDF
-
Vertica Typical Gravity Cross Section – PDF Detail172.98KB | .PDF
-
Vertica Typical Excavation Oversizing – PDF Detail208.62KB | .PDF
-
Vertica Typical Fence Cross Section – PDF Detail205.18KB | .PDF
-
Vertica Typical Fence Section with Sleev-It – PDF Detail238.19KB | .PDF
-
Vertica Typical Guard Rail Section – PDF Detail193.93KB | .PDF
-
Vertica Typical Terraced Wall Cross Section – PDF Detail264.95KB | .PDF
-
Vertica Typical Terraced Wall Connection – PDF Detail309.61KB | .PDF
-
Vertica Typical Cross Section with Sidewalk – PDF Detail224.15KB | .PDF
-
Vertica Typical Cross Section with Crest Slope – PDF Detail214.03KB | .PDF
-
Vertica Typical Drainage Swale Cross Section – PDF Detail216.86KB | .PDF
-
Vertica Typical Shoreline Cross Section – PDF Detail317.12KB | .PDF
-
Vertica Typical Groundwater Intrusion Cross Section – PDF Detail252.08KB | .PDF
-
Vertica Typical Drain Pipe Through Wall Face – PDF Detail253.38KB | .PDF
-
Vertica Typical Drain Pipe Through Toe Slope – PDF Detail267.85KB | .PDF
-
Vertica Typical Cross Section with Parallel Utilities – PDF Detail196.77KB | .PDF
-
Vertica Typical Utilities Below Wall – PDF Detail352.98KB | .PDF
-
Vertica Typical Small Utilities Through Wall – PDF Detail279.49KB | .PDF
-
Vertica Typical Large Utilities Through Wall – PDF Detail282.11KB | .PDF
-
Vertica Typical Drop Structure Behind Wall – PDF Detail324.92KB | .PDF
-
Vertica Typical Alternate Drop Structure Behind Wall – PDF Detail148.70KB | .PDF
-
Vertica Typical Wall Abutting Structure – PDF Detail257.32KB | .PDF
-
Vertica Typical Reinforcement Connection – PDF Detail143.88KB | .PDF
-
Vertica Typical Outside Curves – PDF Detail258.01KB | .PDF
-
Vertica Typical Inside Curves – PDF Detail169.96KB | .PDF
-
Vertica Typical Outside Corners – PDF Detail464.93KB | .PDF
-
Vertica Typical Inside Corners – PDF Detail415.18KB | .PDF
-
Vertica Typical Outside Angles – PDF Detail196.41KB | .PDF
-
Vertica Typical Inside Angles – PDF Detail218.23KB | .PDF
-
Vertica Beveled Unit – PDF Detail147.31KB | .PDF
-
Vertica Straight Unit – PDF Detail145.06KB | .PDF
-
Vertica Stone Cut Unit – PDF Detail146.84KB | .PDF
-

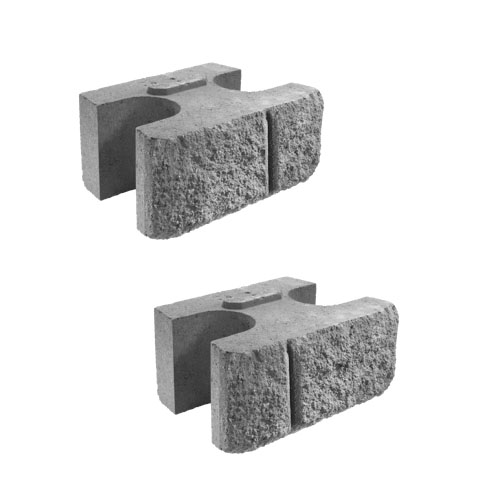

Vertica Virtual Joint Unit – PDF Detail156.54KB | .PDF
-
Vertica Standard – PDF Details5.20MB | .PDF
-
-
-
Vertica Series – National Cut Sheet535.85KB | .PDF
-
-
-
SRW Quick Reference Install Guide541.01KB | .PDF
-
-
-
Vertica® Guide Specification38.05KB | .DOCX
-
